//self-cooling

Mimicking the cactus, which has developed cooling ribs that gives it a self-shading surface. When sunlight hits one side of the rib, it automatically shades the other side of it. at the same time, the open on top design borrows its functionality from the Malqaf;
a traditional Arabic architectural feature used for natural ventilation and cooling. It consists of a windcatcher or shaft that captures breezes and directs them into buildings. The Sabil design allows for the circulation of air, creating a sustainable micro-environment by reducing the reliance on artificial cooling methods like air conditioning.

/The Sabil is built using overlapping members and layered surfaces to avoid overheating the interior and its surface…

/Mimicking the cactus, which has developed cooling ribs that gives it a self-shading surface
/The Sabil concertina structure has a ribbed surface, inspired by those found on desert cacti, which forms a self-shading structure.
/When sunlight hits one side of the rib, it automatically shades the other side of it.

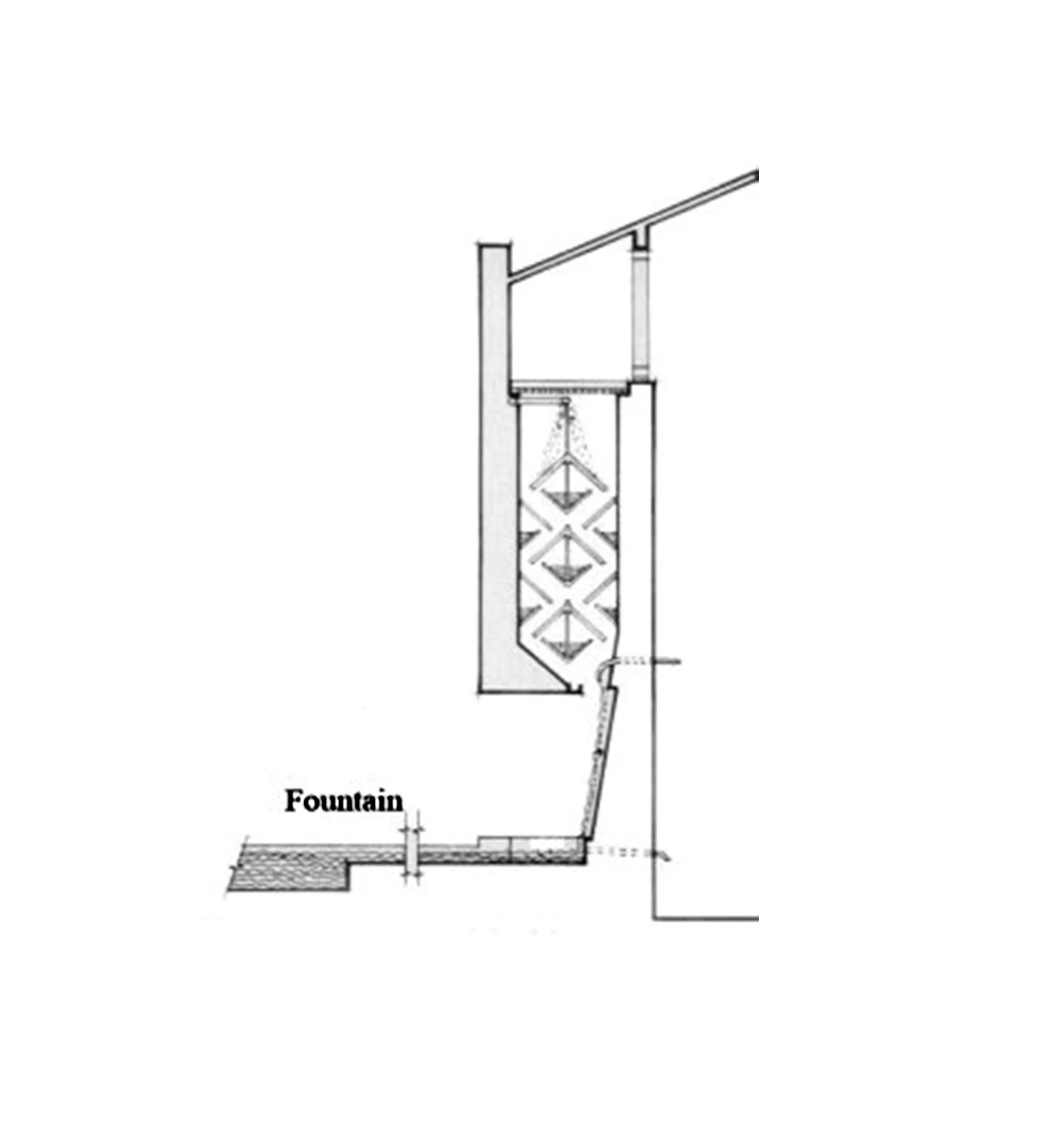

/ A malqaf is a traditional Arabic architectural feature used for natural ventilation and cooling. It consists of a windcatcher or shaft that captures breezes and directs them into buildings.

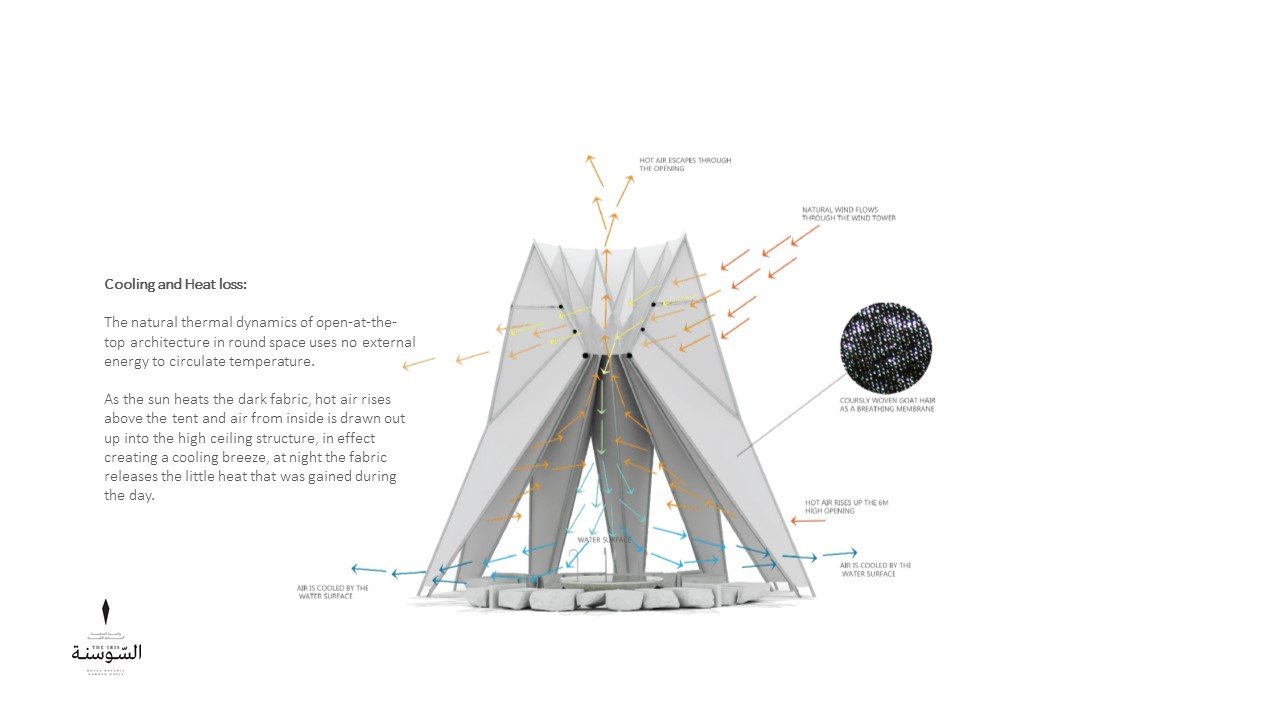

/ The design allows for the circulation of air, creating a sustainable micro-environment by reducing the reliance on artificial cooling methods like air conditioning.
/Surface design employed as a thermal barrier, through the use of the pattern and the organic natural weave
/The 3-dimensional surface will have a self-shading effect (the surface design) on the micro-level. Pockets of air trapped in the diamond pattern will create a heat insulating layer, creatig a wall with a thickness out of fabric.
/Climate-specific characteristics - Tent Canvas Specification Composition and Color Goat hair fiber, Silky black, not dyed Density 22kg/m3 (+-15%) in finished state Water vapour permeability 2000g/m2 /24h ASHRAE Zone 3 Water penetration resistance 30hPa minimum, increasing speed at 100mm per min Water Absorption @ 100% RH ~15% Thermal diffusivity (α) 80 m²/s Thermal resistance (R), 0.1 (m2K)/W Thermal emissivity (ε) 0.1 Specific heat capacity (cρ), 1.4 kJ/(Kg·K) Thermal conductivity (λ) 0.05 W/(m·K) Fabric thickness at 250 Pa (h) 0.005m
